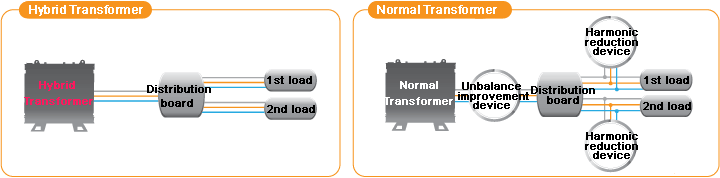

With Hybrid transformers, there is no need to install harmonic reduction devices and unbalance improvement devices. This reduces the investment costs and minimises the installation space required.
Item
Hybrid transformer
Transformer with high efficiency and low noise
Amorphous transformer
General transformer
Coil
Zigzag dual coiling
General coiling method
General coiling method
General coiling method
Iron core
Laser core
Laser core
Amorphous core
Silicon Steel Plate
Main functions
Transformation
O
O
O
O
Harmonic reduction
O
-
-
-
Unbalance improvement
O
-
-
-
Efficiency (100% loaded)
99.12%
99.12%
98.90%
98.60%
Favorable load factor
50% or higher
50% or higher
40% or below
-
Energy saving effect
7.8%
5.3%
4.2%
-
Product prices (Versus general transformers)
160%
145%
184%
100%
* The above data will vary depending on the capacity of the transformers and the usage conditions
